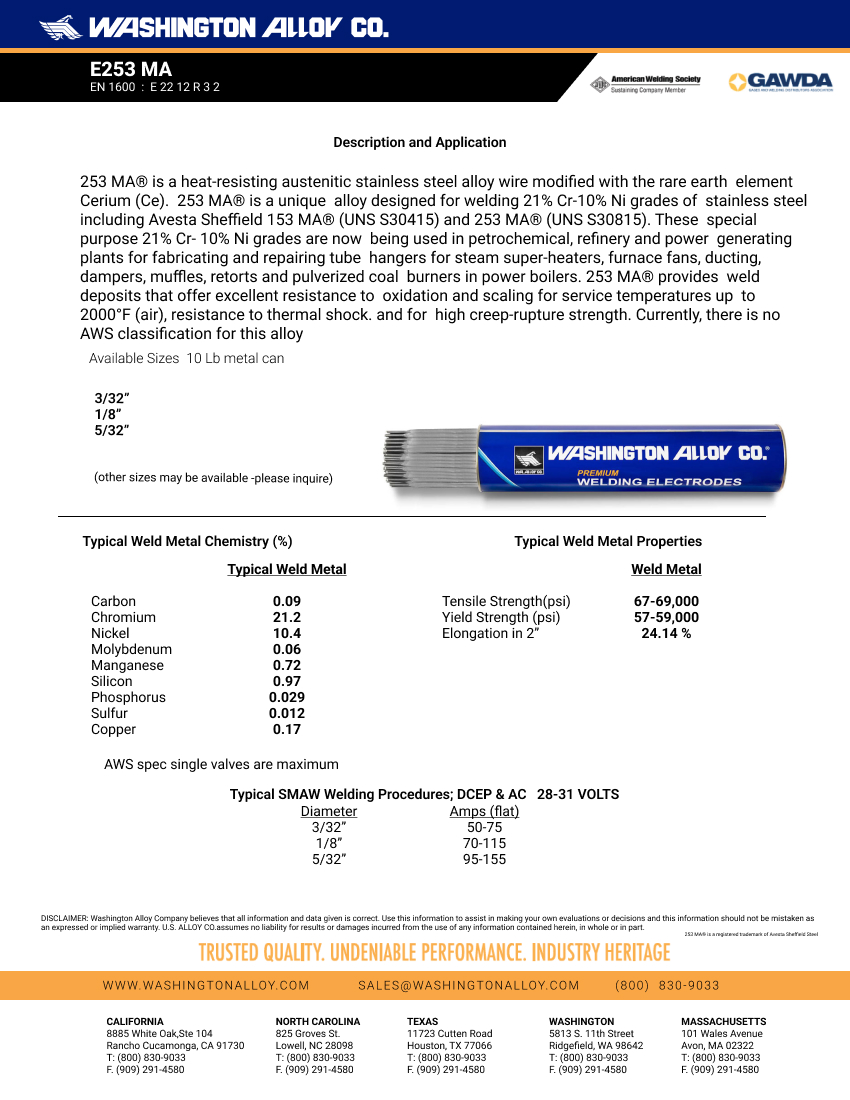

E253 MA
EN 1600 : E 22 12 R 3 2
253 MA® is a heat-resisting austenitic stainless steel alloy wire modified with the rare earth element Cerium (Ce). 253 MA® is a unique alloy designed for welding 21% Cr-10% Ni grades of stainless steel including Avesta Sheffield 153 MA® (UNS S30415) and 253 MA® (UNS S30815). These special purpose 21% Cr- 10% Ni grades are now being used in petrochemical, refinery and power generating plants for fabricating and repairing tube hangers for steam super-heaters, furnace fans, ducting, dampers, muffles, retorts and pulverized coal burners in power boilers. 253 MA® provides weld deposits that offer excellent resistance to oxidation and scaling for service temperatures up to 2000°F (air), resistance to thermal shock. and for high creep-rupture strength. Currently, there is no AWS classification for this alloy
TYPICAL WIRE CHEMISTRY (%)
- | Typical Weld Metal |
---|---|
C | 0.09 |
Cr | 21.2 |
Ni | 10.4 |
Mo | 0.06 |
Ma | 0.72 |
Si | 0.97 |
P | 0.029 |
Su | 0.012 |
Cu | 0.17 |
Typical Weld Metal Properties
- | Weld Metal |
---|---|
Tensile Strength (psi) | 67-69,000 |
Yield Strength (psi) | 57-59,000 |
Elongation 2" | 24.14% |
