E308L-16
AWS A5.4 E308L-16
ASME SFA 5.4 E308L-16

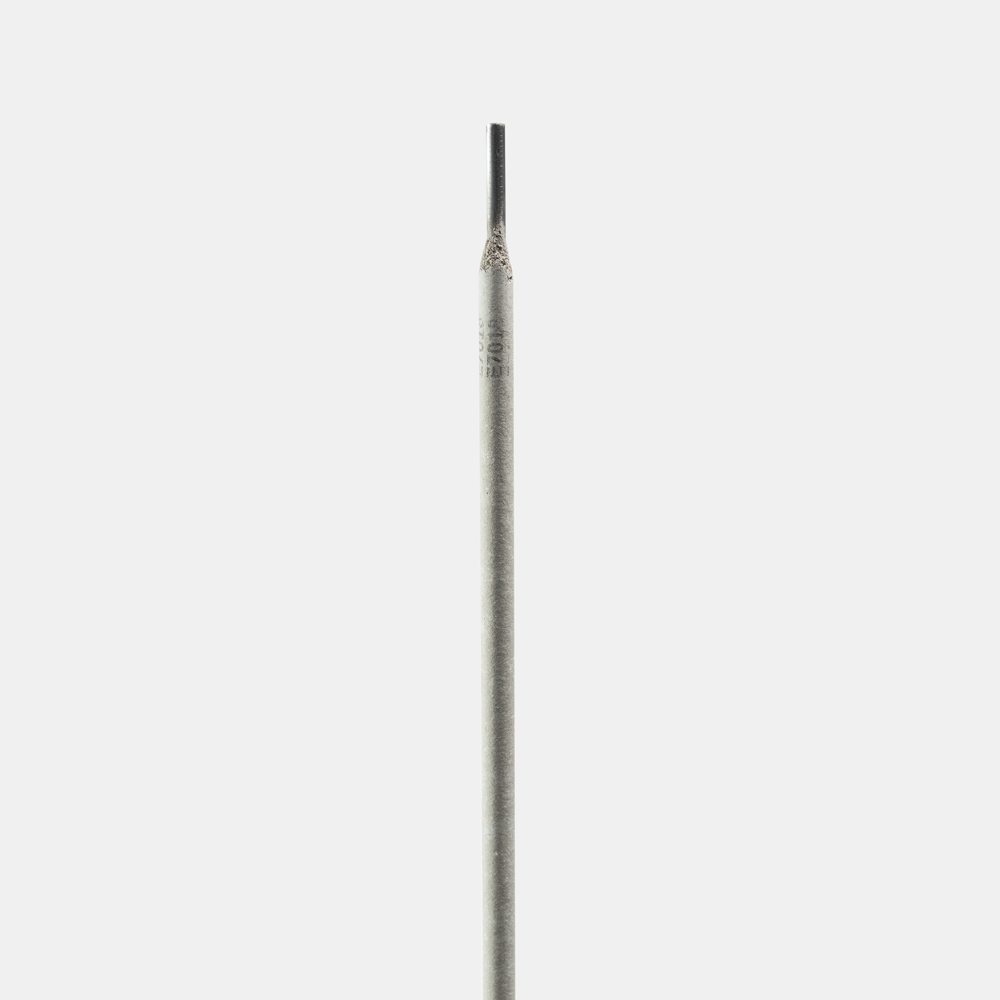

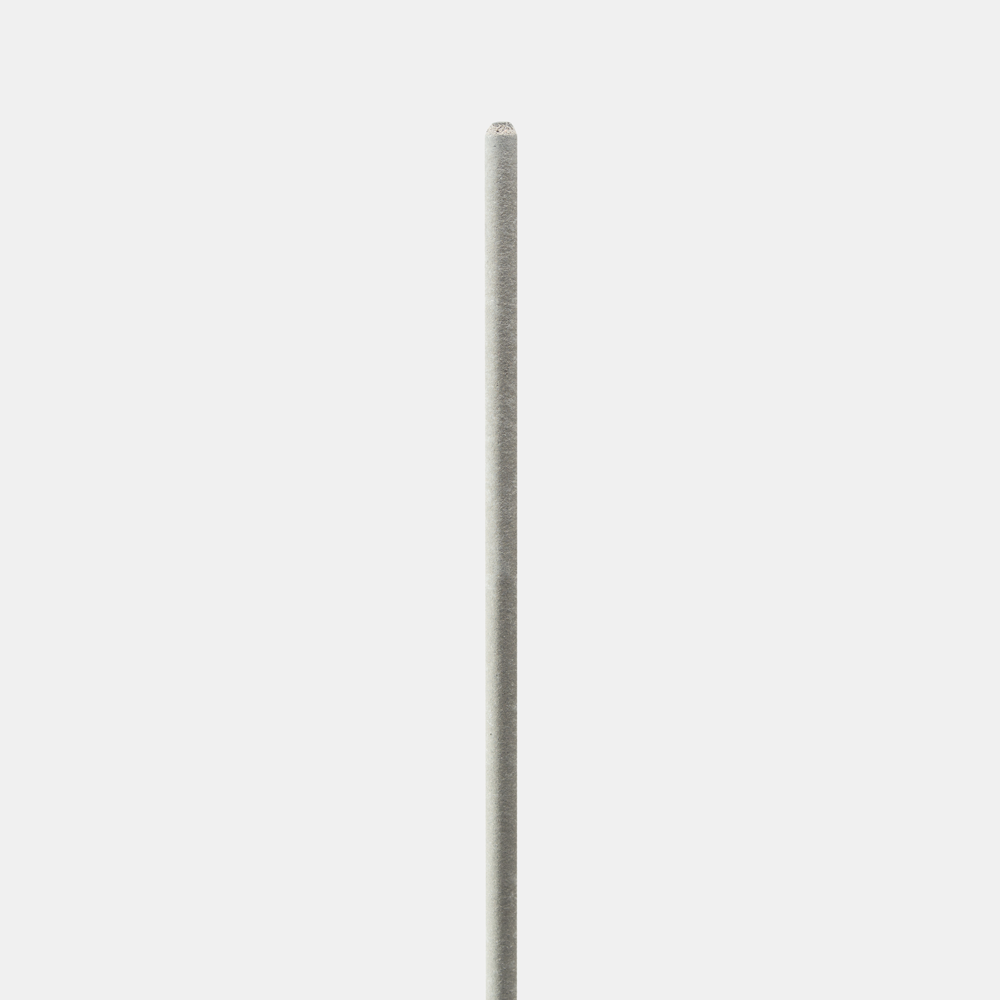

E308L electrodes contain extra low carbon for the welding of austenitic, low carbon 18% Cr-8% Ni stainless steels such as AISI- 304-ELC. The weld deposit of this electrode contains a maximum of 0.04% carbon, which greatly reduces the formation of chromium carbides, thereby protecting the corrosion resistant qualities of the base metal and weld. USA 308L
electrodes have a high deposition rate resulting in excellent efficiency. This electrode may be used in all positions. In addition to 304-ELC, E308L
electrodes may be used for stabilized stainlesssteels such as AISI 321 and 347, Joint welds in construction parts for chemical engineering and
cryogenic applications.
TYPICAL WIRE CHEMISTRY (%)
C | 0.030 |
Si | 0.400 |
Mn | 1.030 |
P | 0.018 |
S | 0.010 |
Cr | 19.580 |
Ni | 10.200 |
TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT (as welded)
Tensile strength (psi) | 80,000 |
Yield strength (psi) | 55,000 |
Elongation in 2"(%) | 46 |
