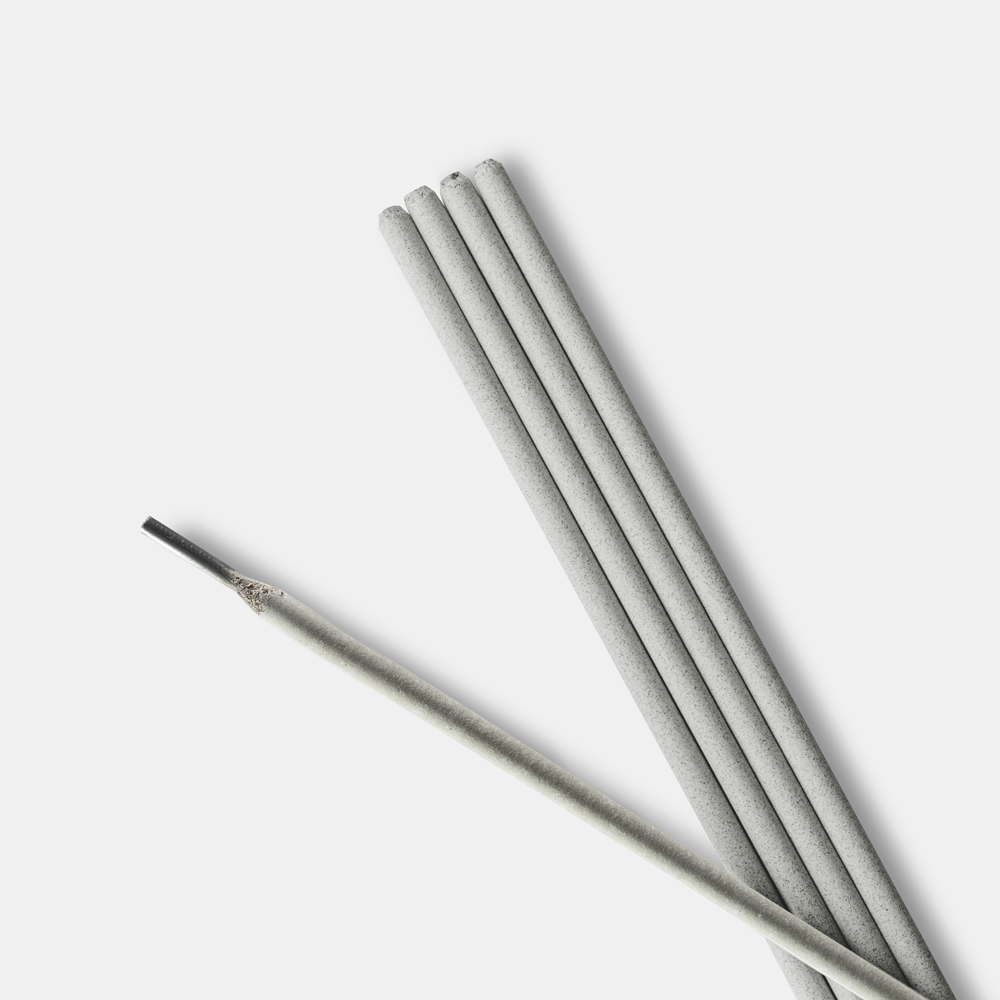

E316L-16

AWS A5.4 E316L-16

316L electrodes produce weld deposits similar to that of USA 316, but with a maximum 0.04% carbon. This extra-low carbon content gives the weld deposit excellent resistance against intergranular corrosion caused by carbide precipitation. 316L electrodesare used for welding 18% Cr– 12% Ni– 2.5% Mo stainless steels where the corrosion resistant qualities of AISI 316L are required. This electrode has a high deposition rate and produces a welddeposit with a fine bead appearance and exceptional crack-resistance. USA 316L electrodes are most commonly used in the textile, paper, cellulose, and chemical equipment industries for the fabrication of 316L, 318, and 319L stainless steel products.

TYPICAL WIRE CHEMISTRY (%)

-

E316L-16

C

0.03

Mn

1.25

Si

0.48

Cr

19.06

Mo

2.16

P

0.02

S

0.012

Ni

12.12

Typical mechanical properties of weld metal (C02 shielding gas)

-

E316L-16

Yield Strength (psi)

55,000

Ultimate Tensile Strength (psi)

80,000

Elongation in 2" (%)

46
