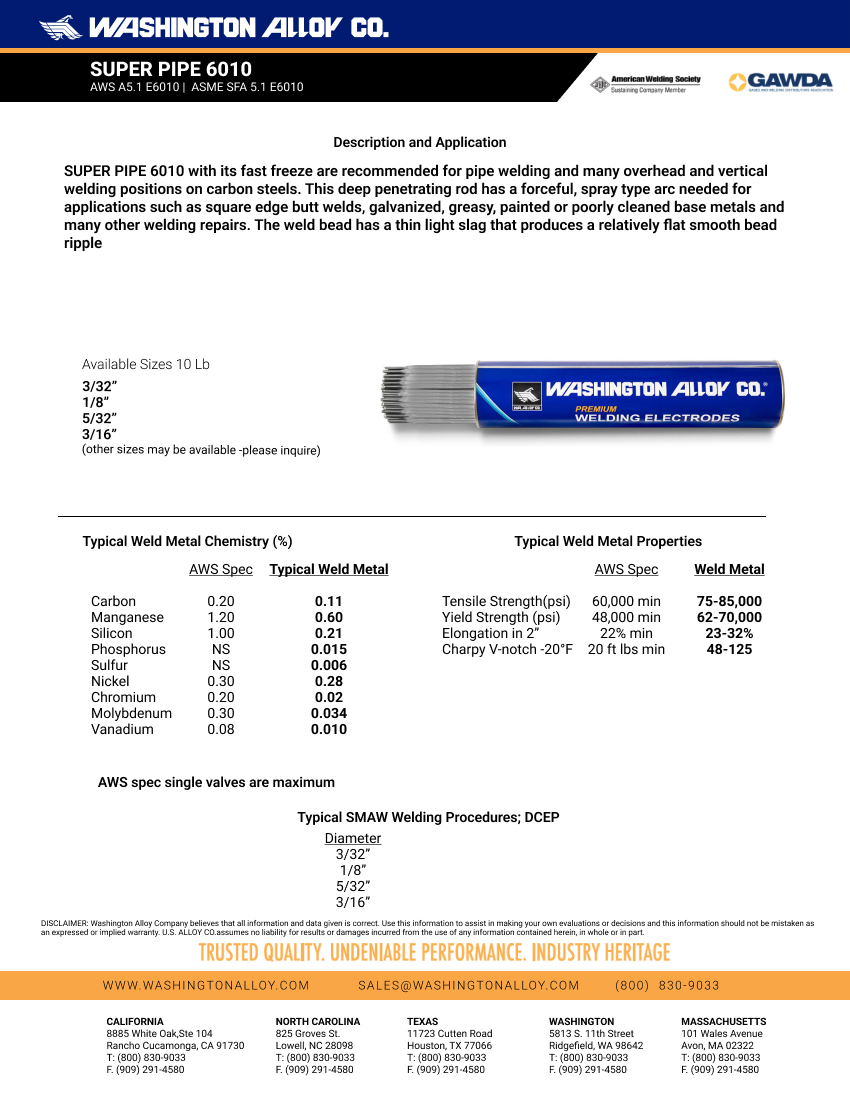

SUPER PIPE (E6010)

AWS A5.1 E6010 | ASME SFA 5.1 E6010

6010P with its fast freeze are recommended for pipe welding and many overhead and vertical welding positions on carbon steels. This deep penetrating rod has a forceful, spray type arc needed for applications such as square edge butt welds, galvanized, greasy, painted or poorly cleaned base metals and many other welding repairs. The weld bead has a thin light slag that produces a relatively flat smooth bead ripple.

CHEMICAL COMPOSITION, WEIGHT PERCENT


Typical Weld Metal

Carbon

0.11

Manganese

0.60

Silicon

0.21

Phosphorus

0.15

Sulfur

0.06

Nickel

0.28

Chromium

0.02

Molybdenum

0.034

Vanadium

0.010

Physical Data

Tensile Strength (psi)

60,000 min

75-85,000

Yield Strength (psi)

48,000 min

62-70,000

Elongation in 2"

22% min

23-32%

Charpy V-notch -20°F

20 ft lbs min

48-125
