E6012

AWS A5.1 E6012
ASME SFA 5.1 E6012

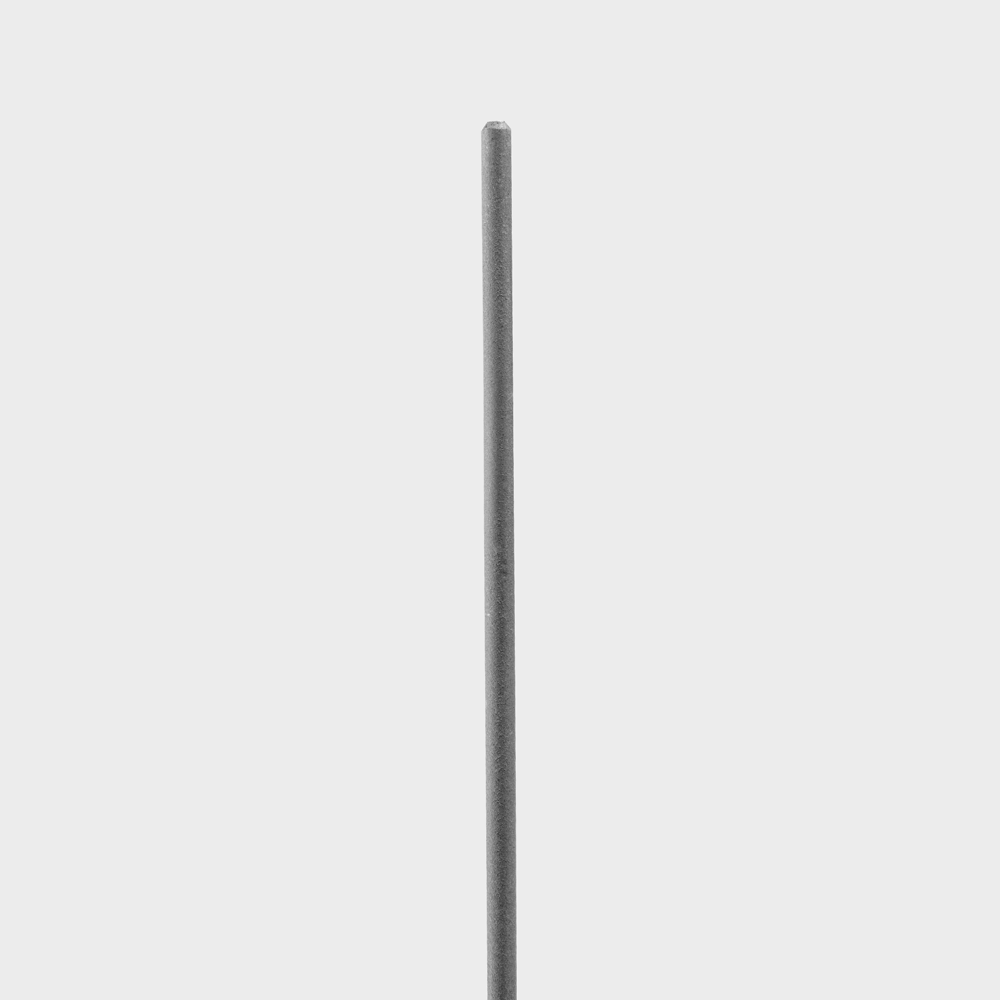

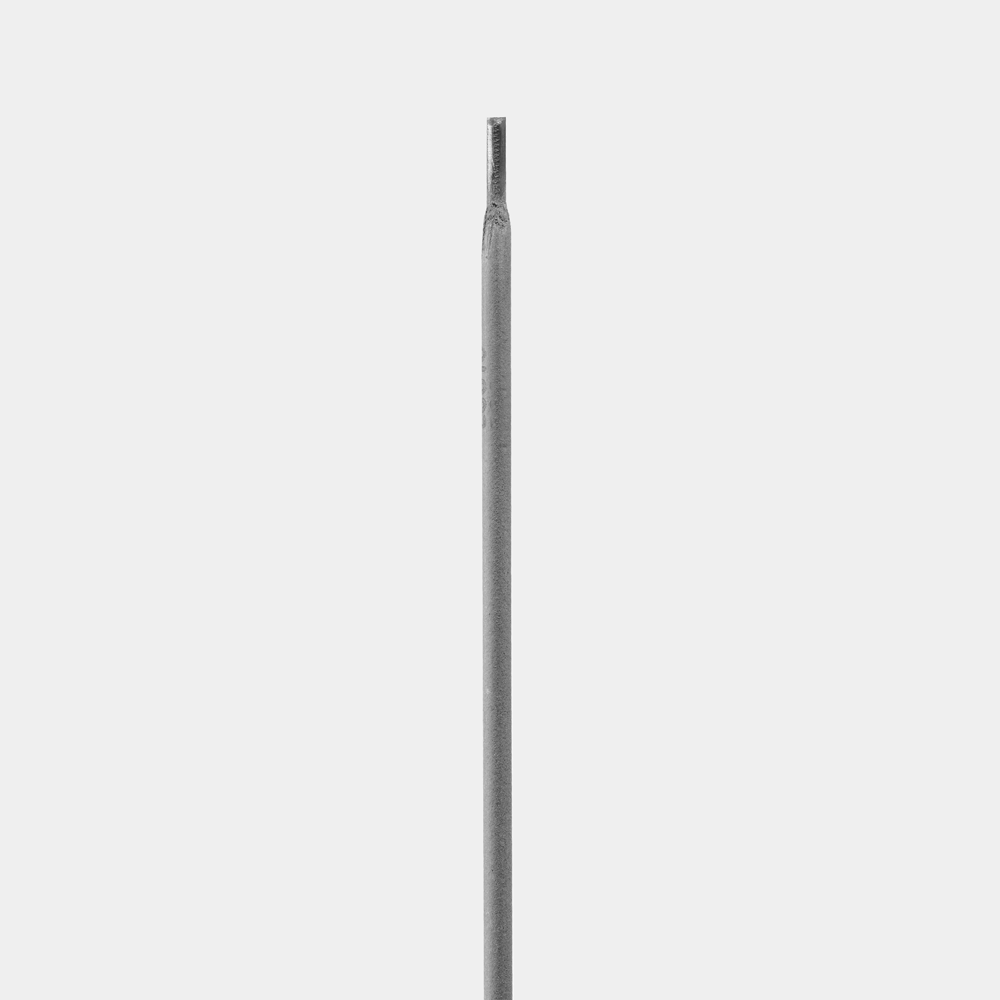

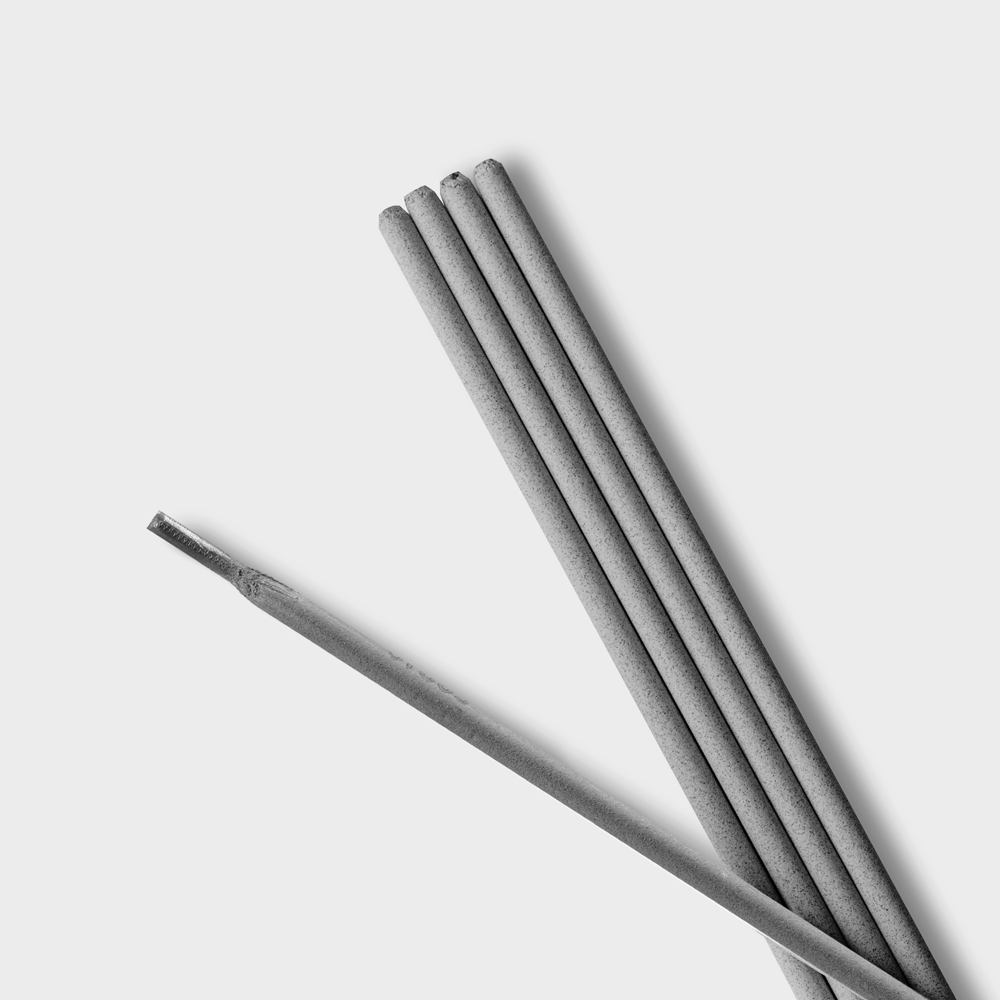

E6012 high titania coated electrodes were developed for usage on thin sections and poor fit-up joints where shallow penetration is required.
This electrode produces a quiet arc forceful enough to prevent slag build-up during vertical down welding. E6012 electrodes produce smooth, uniform weld deposits with low spatter and low porosity. Maximum deposition efficiency is attained even at increased currents and travel
speeds on thick and thin base plates. E6012 electrodes may be used in any position.

Applications:

E6012 is used for welding steel window frames, sheet steel, metal furniture, railway freight cars, automobiles, ships, barges, rolling stocks, pipes, castings and tanks. It is an excellent electrode to use for lap fillet joint welding on bottom plates in tanks.

TYPICAL WELD METAL CHEMISTRY (%)

C

0.090

Mn

0.460

Si

0.260

P

0.014

S

0.013

TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT
(As welded)

Yield strength (psi)

61,000

Tensile strength (psi)

70,000

Elongation in 2" (%)

26

Charpy V-notch at - 20 degrees

65

Reduction in are (%)

40

AVAILABLE SIZES AND RECOMMENDED CURRENT (DC+)

Diameter (in.)

3/32

1/8

5/32

3/16

7/32

1/4

Length (in.)

14

14

14

14

14

14

Amps F

65-100

85-130

110-160

160-220

200-260

210-280

Amps



V & O

65-100

85-130

100-150

120-190

140-190
