E6013

AWS A5.1 E6013
ASME SFA 5.1 E6013

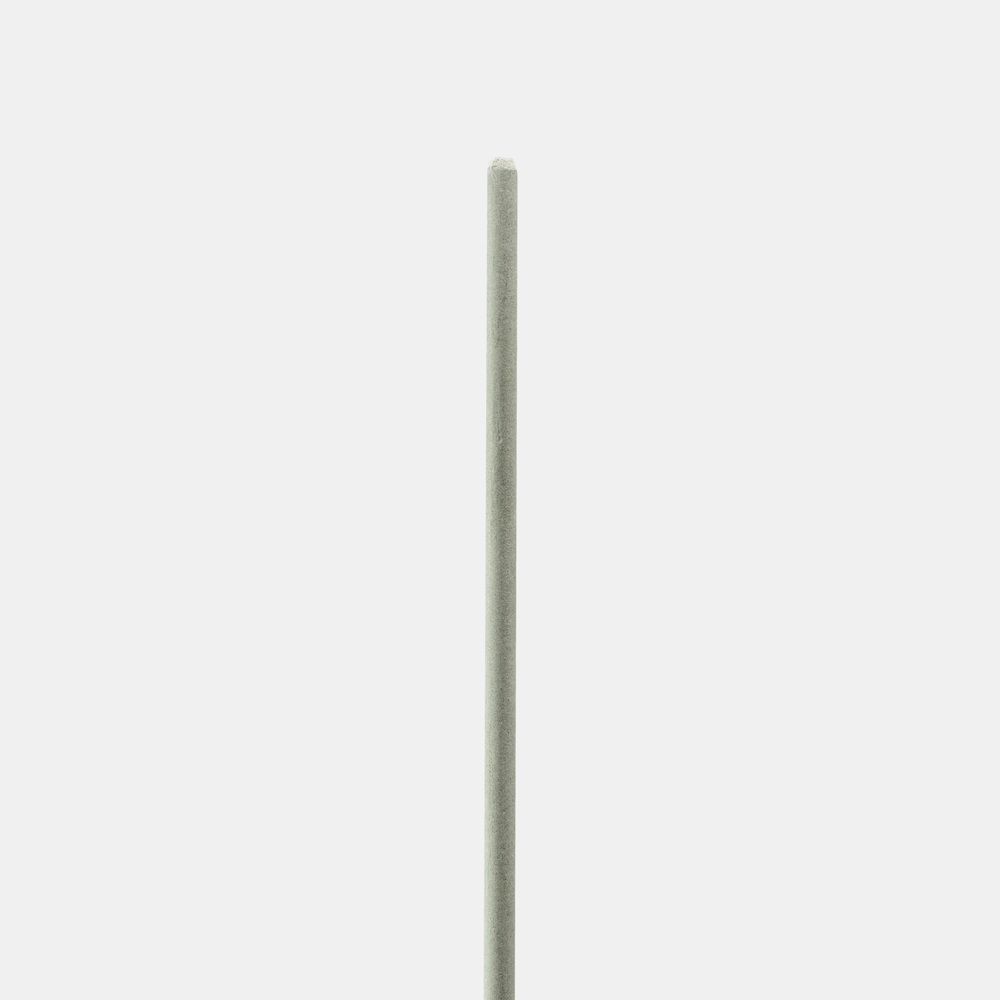

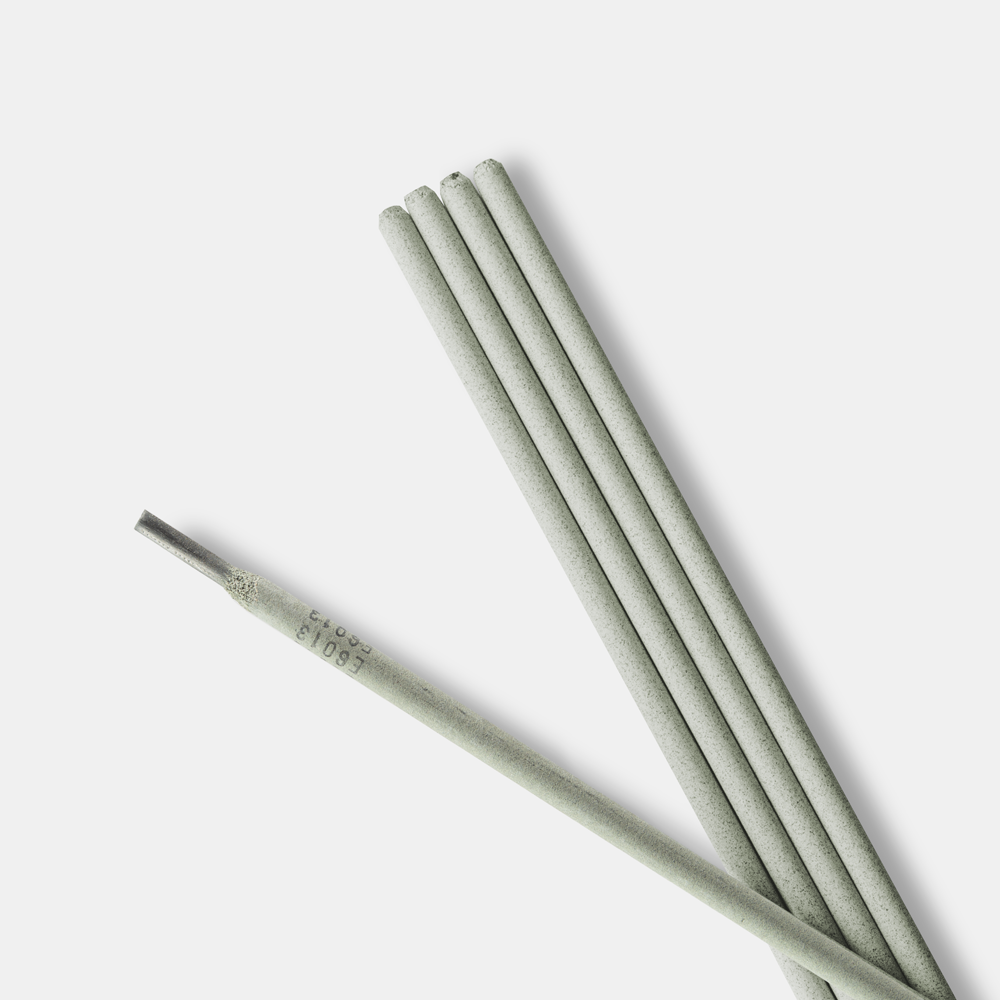

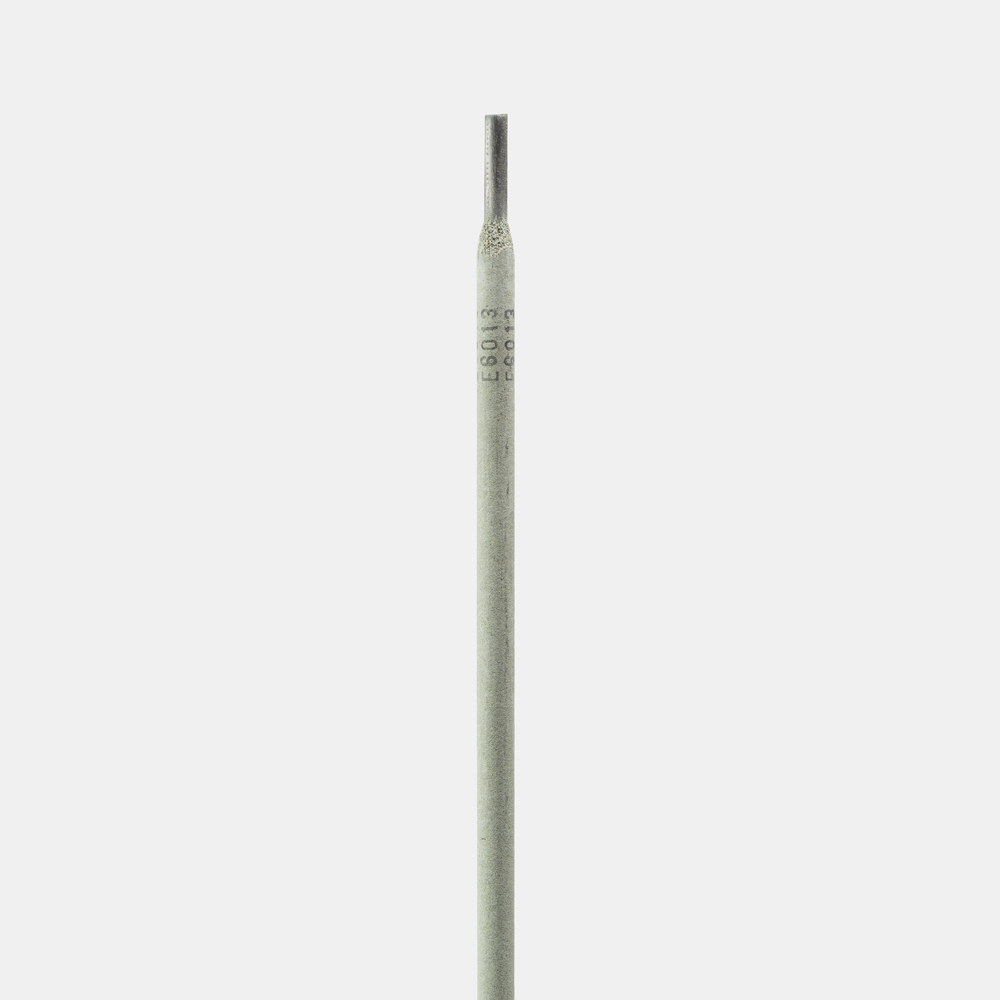

E6013 high titania coated electrodes produce weld deposits which are much smoother and flatter than those produced by E6012. This
electrode was primarily designed to provide good wetting and shallow penetration for thin sheet metal applications (using smaller diameter
electrodes), but with sufficient penetration for welding medium gauge steel. As a result, E6013 is an all- purpose electrode that provides a
soft steady arc which is easily regenerated, easy slag control for vertical-down welding, low spatter and a beautiful bead appearance. E6013
electrodes may be used in any position with AC or DC (straight or reverse polarity).

Applications:

E6013 is commonly used for automobile bodies, truck frames and bodies, ornamental iron, metal furniture, farm implements, machinery guards, storage tanks, or wherever appearance is important or desirable.

TYPICAL WELD METAL CHEMISTRY (%)

C

0.070

Mn

0.450

Si

0.320

P

0.014

S

0.008

TYPICAL MECHANICAL PROPERTIES OF WELD DEPOSIT
(As welded)

Yield strength (psi)

63,000

Tensile strength (psi)

70,000

Elongation in 2" (%)

29.7

Charpy V-notch at - 20 degrees

58

Reduction in are (%)

58

AVAILABLE SIZES AND RECOMMENDED CURRENT (DC+)

Diameter (in.)

1/16

5/64

3/32

1/8

5/32

3/16

Length (in.)

10

12

14

14

14

14

Amps F

25-50

35-60

50-100

80-130

140-180

180-230

Amps



V & O

25-50

35-60

50-90

60-110

110-160

120-160
