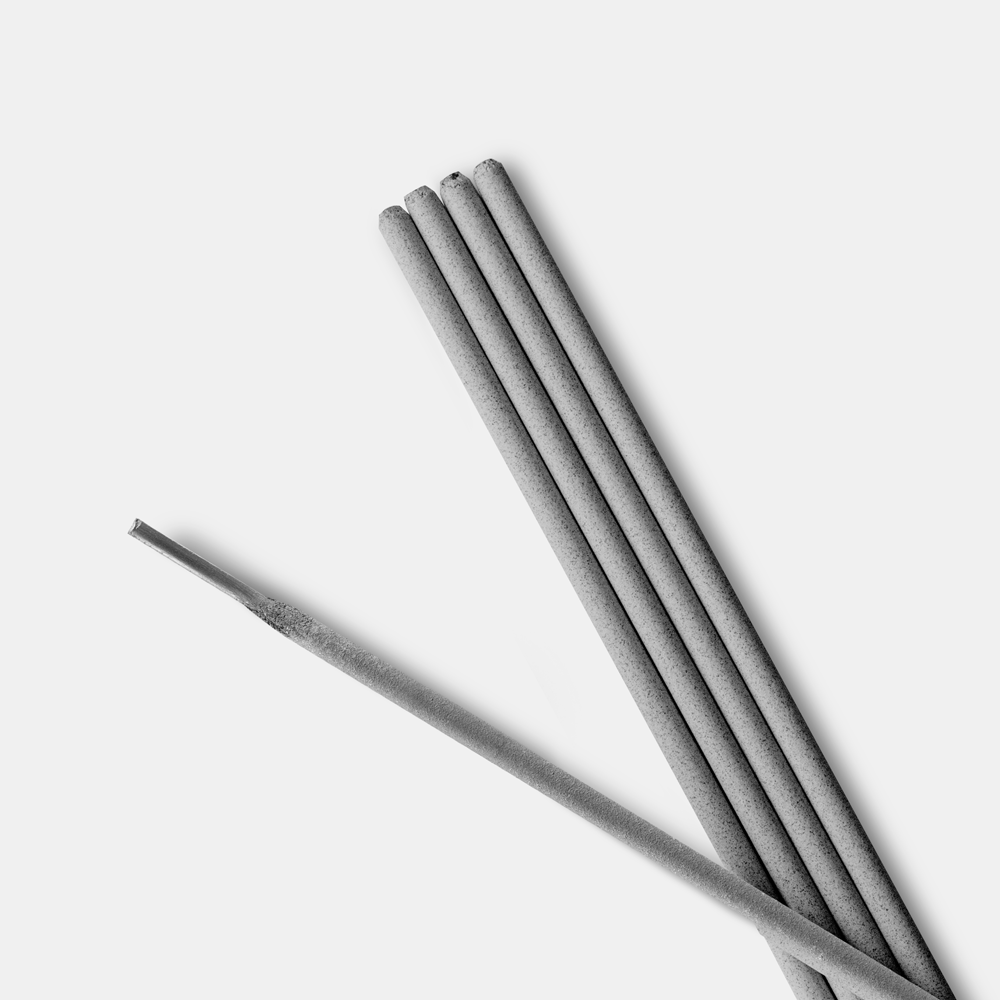

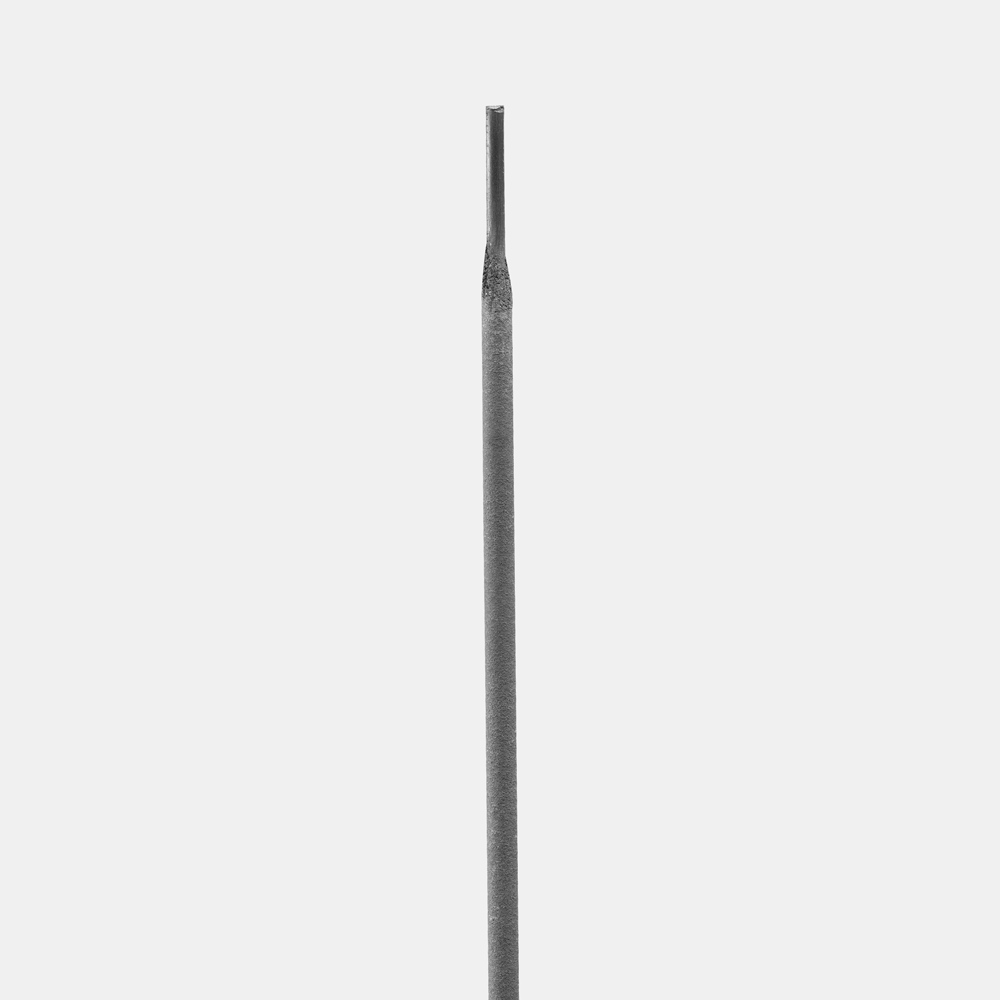

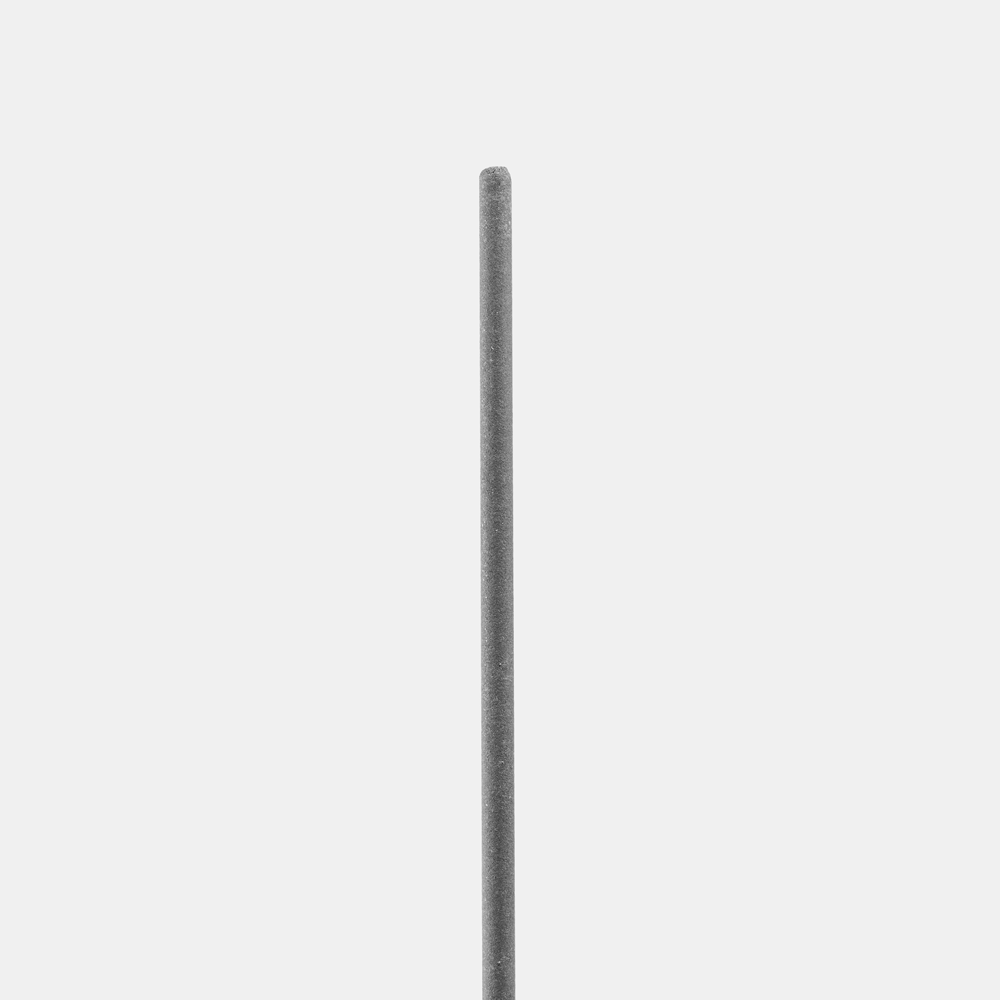

E7018-1
AWS A5.1 E7018-1, E7018
7018-1 is general low hydrogen mild steel all position electrodes recommended for mild –high carbon base metals, ship building/barge offshore drilling rigspower, petrochemical and boiler plants. These rods are formulated to have quality welds with very easy slag removal orself-peeling, excellent welder appeal on those poor weldable steels. 7018-1 is easy to control which is used often for high impact levelat -50°F while providing a stable arc with a flat to slightly convex fine ripple weld appearance.
TYPICAL WIRE CHEMISTRY (%)
- | E7018-1 | AWS Spec |
|---|---|---|
C | 0.02 | 0.15 max. |
Mn | 1.05 | 1.60 max. |
Si | 0.49 | 0.75 max. |
P | 0.01 | 0.035 max. |
S | 0.014 | 0.035 max. |
Ni | 0.065 | 0.3 max. |
Cr | 0.01 | 0.2 max. |
Mo | 0.01 | 0.3 max. |
V | < 0.01 | 0.08 max. |
Mn + Ni + Cr + Mo + V | N/A | 1.50 max. |
Typical mechanical properties of weld metal (C02 shielding gas)
- | E7018-1 | AWS Spec |
|---|---|---|
Yield Strength (psi) | 79,000 | 70,000 min. |
Ultimate Tensile Strength (psi) | 67,000 | 58,000 min. |
Elongation in 2" (%) | 28 | 22 min. |
Charpy V-notch at -50 F (ft. lbs) | 73 | 20 min. |
Charpy V-notch at -20 F (ft. lbs) | 95 | 20 min. |
