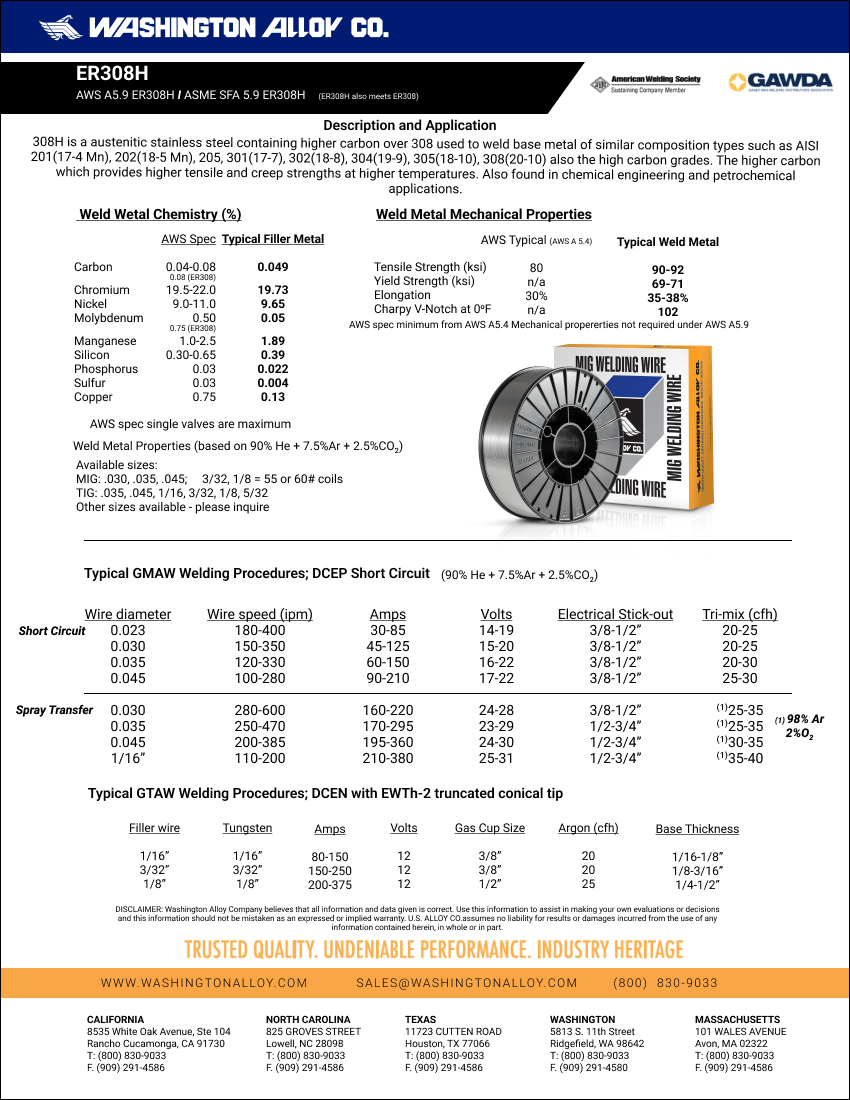

ER308H
AWS A5.9 ER308H I ASME SFA 5.9 ER308H
(ER308H also meets ER308)
308H is a austenitic stainless steel containing higher carbon over 308 used to weld base metal of similar composition types such as AISI 201(17-4 Mn), 202(18-5 Mn), 205, 301(17-7), 302(18-8), 304(19-9), 305(18-10), 308(20-10) also the high carbon grades. The higher carbon which provides higher tensile and creep strengths at higher temperatures. Also found in chemical engineering and petrochemical applications.
TYPICAL WIRE CHEMISTRY (%)
- | ER308H |
|---|---|
C | 0.049 |
Mn | 0.05 |
Si | 0.39 |
Cr | 19.73 |
P | 0.022 |
S | 0.004 |
Ni | 9.65 |
Cu | 0.13 |
Typical mechanical properties of weld metal (C02 shielding gas)
- | ER308H |
|---|---|
Yield Strength (psi) | 69-71 |
Ultimate Tensile Strength (psi) | 90-92 |
Elongation in 2" (%) | 35-38% |
Download SDS
