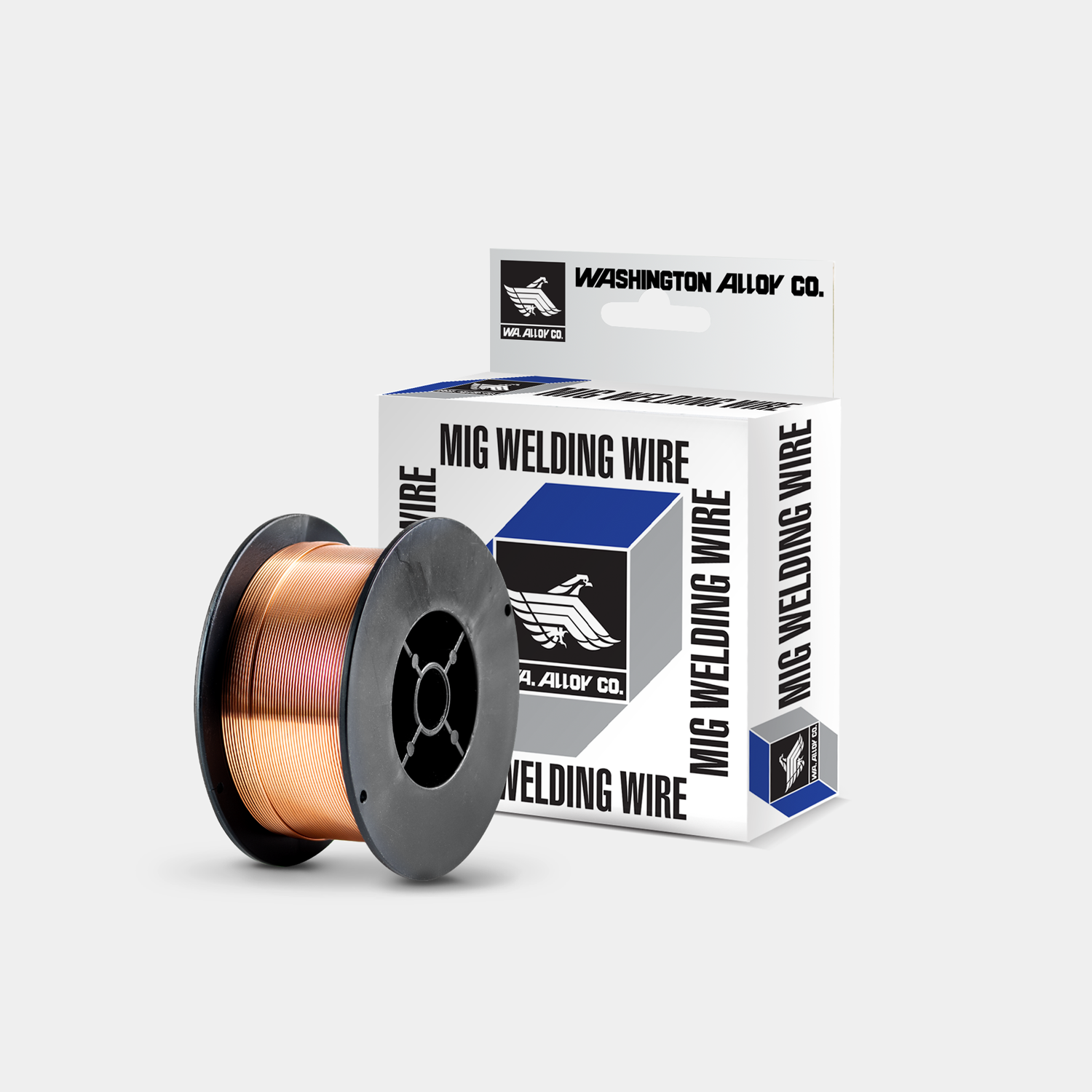

ER70S-6
AWS A5.18 ER70S-6
ASME SFA 5.18 ER70S-6
ER70S-6 contains high levels of manganese and silicon for stronger deoxidizing power where stringent cleaning procedures are not possible. This wire has been designed to provide X-ray quality porosity-free welds and the highest tensile strength (as welded) of the plain carbon steel wires. The high silicon content increases the fluidity of the weld pool, creating a smoother bead appearance and resulting in minimal post-weld grinding. ER70S-6 is excellent where poor fit-ups or rusty and oily plates may be used.
Applications:
Construction work, tanks, truck bodies, farm implements, pipes, steel castings or forgings, shaft build-ups and general shop fabrications.
TYPICAL WIRE CHEMISTRY (%)
- | ER70S-6 | AWS Spec |
|---|---|---|
C | 0.100 | 0.06-0.15 |
Mn | 1.700 | 1.40-1.85 |
Si | 1.000 | 0.80-1.15 |
P | 0.010 | 0.025 max |
S | 0.015 | 0.035 max |
Typical mechanical properties of weld metal (C02 shielding gas)
- | AWS Spec | ER70S-6 |
|---|---|---|
Yield strength (psi) | 60,000 min | 73,000 |
Ultimate tensile strength (psi) | 72,000 min | 90,000 |
Elongation in 2" (%) | 22 min | 25 |
Charpy V-notch at 0 F (ft. lbs) | 20 min | 28 |
Reduction of area | - | 60 |
Average Brinell Hardness | - | 160 |
| WA Part No. | Description | UPC Code |
| TC 70S-6 01 | ER70S-6 .023 X 2 LB SPOOL | 034496905006 |
| TC 70S-6 02 | ER70S-6 .023 X 11 LB SPOOL | 034496905013 |
| TC 70S-6 033 | ER70S-6 .023 X 33 LB SPOOL | 034496963891 |
| TC 70S-6 04 | ER70S-6 .030 X 2 LB SPOOL | 034496905037 |
| TC 70S-6 05 | ER70S-6 .030 X 11 LB SPOOL | 034496905044 |
| TC 70S-6 063 | ER70S-6 .030 X 33 LB SPOOL | 034496950266 |
| TC 70S-6 064 | ER70S-6 .030 X 550 LB PAIL PACK | 034496950181 |
| TC 70S-6 07 | ER70S-6 .035 X 2 LB SPOOL | 034496905099 |
| TC 70S-6 08 | ER70S-6 .035 X 11 LB SPOOL | 034496905105 |
| TC 70S-6 093 | ER70S-6 .035 X 33 LB SPOOL | 034496905440 |
| TC 70S-6 093B | ER70S-6 .035 X 33 LB (NON-COPPER COATED) | 034496950778 |
| TC 70S-6 104 | ER70S-6 .035 X 44 LB SPOOL | 034496950235 |
| TC 70S-6 10B | ER70S-6 .035 X 44 LB SPOOL (NON-COPPER COATED) | 034496950594 |
| TC 70S-6 11 | ER70S-6 .035 X 60 LB COIL | 034496905198 |
| TC 70S-6 120 | ER70S-6 .035 X 250 LB PAIL PACK | 034496950105 |
| TC 70S-6 123V | ER70S-6 .035 X 550 LB PAIL PACK | 034496988207 |
| TC 70S-6 128 | ER70S-6 .035 X 880 LB PAIL PACK | 034496988221 |
| TC 70S-6 13 | ER70S-6 .040 X 11 LB SPOOL | 034496963983 |
| TC 70S-6 14 | ER70S-6 .040 X 33 LB SPOOL | 034496963990 |
| TC 70S-6 144 | ER70S-6 .040 X 44 LB SPOOL | 034496950945 |
| TC 70S-6 15 | ER70S-6 .045 X 2 LB SPOOL | 034496905242 |
| TC 70S-6 16 | ER70S-6 .045 X 11 LB SPOOL | 034496905259 |
| TC 70S-6 173 | ER70S-6 .045 X 33 LB SPOOL | 034496905457 |
| TC 70S-6 184 | ER70S-6 .045 X 44 LB SPOOL | 034496950273 |
| TC 70S-6 18B | ER70S-6 .045 X 44 LB (NON-COPPER COATED) | 034496950402 |
| TC 70S-6 220 | ER70S-6 .045 X 250 LB DRUM | 034496950150 |
| TC 70S-6 223V | ER70S-6 .045 X 550 LB PAIL PACK | 034496988214 |
| TC 70S-6 224 | ER70S-6 .052 X 44 LB SPOOL | 034496950358 |
| TC 70S-6 228 | ER70S-6 .045 X 880 LB PAIL PACK | 034496905365 |
| TC 70S-6 23 | ER70S-6 .052 X 550 LB PAIL PACK | 034496905372 |
| TC 70S-6 233 | ER70S-6 .052 X 60 LB COIL | 034496905389 |
| TC 70S-6 239 | ER70S-6 .052 X 900 LB DRUM | 034496950815 |
| TC 70S-6 24 | ER70S-6 1/16 X 44 LB SPOOL | 034496950310 |
| TC 70S-6 243 | ER70S-6 1/16 X 33 LB SPOOL | 034496950891 |
| TC 70S-6 25 | ER70S-6 1/16 X 60 LB COIL | 034496905426 |
| TC 70S-6 26 | ER70S-6 1/16 X 550 LB PAIL PACK | 034496950679 |
| TC 70S-6 268 | ER70S-6 1/16 X 880 LB PAIL PACK | 034496224299 |
