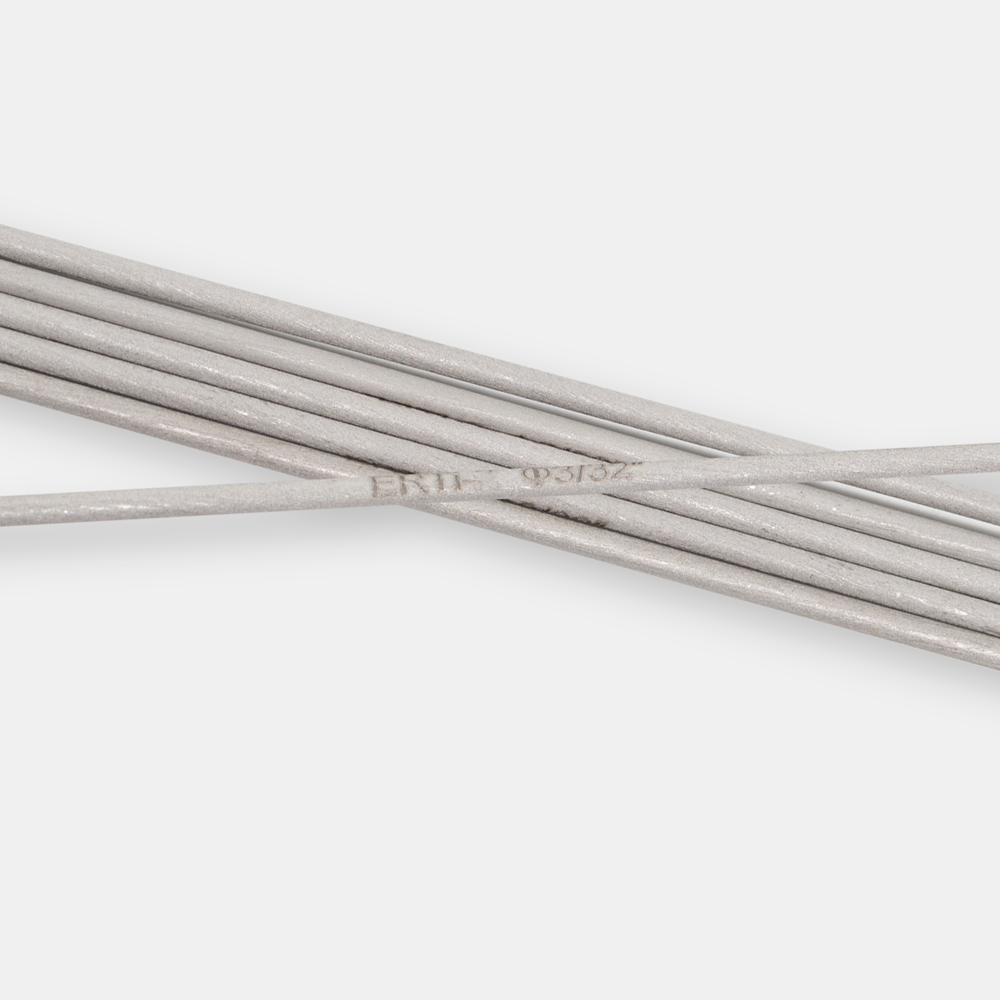

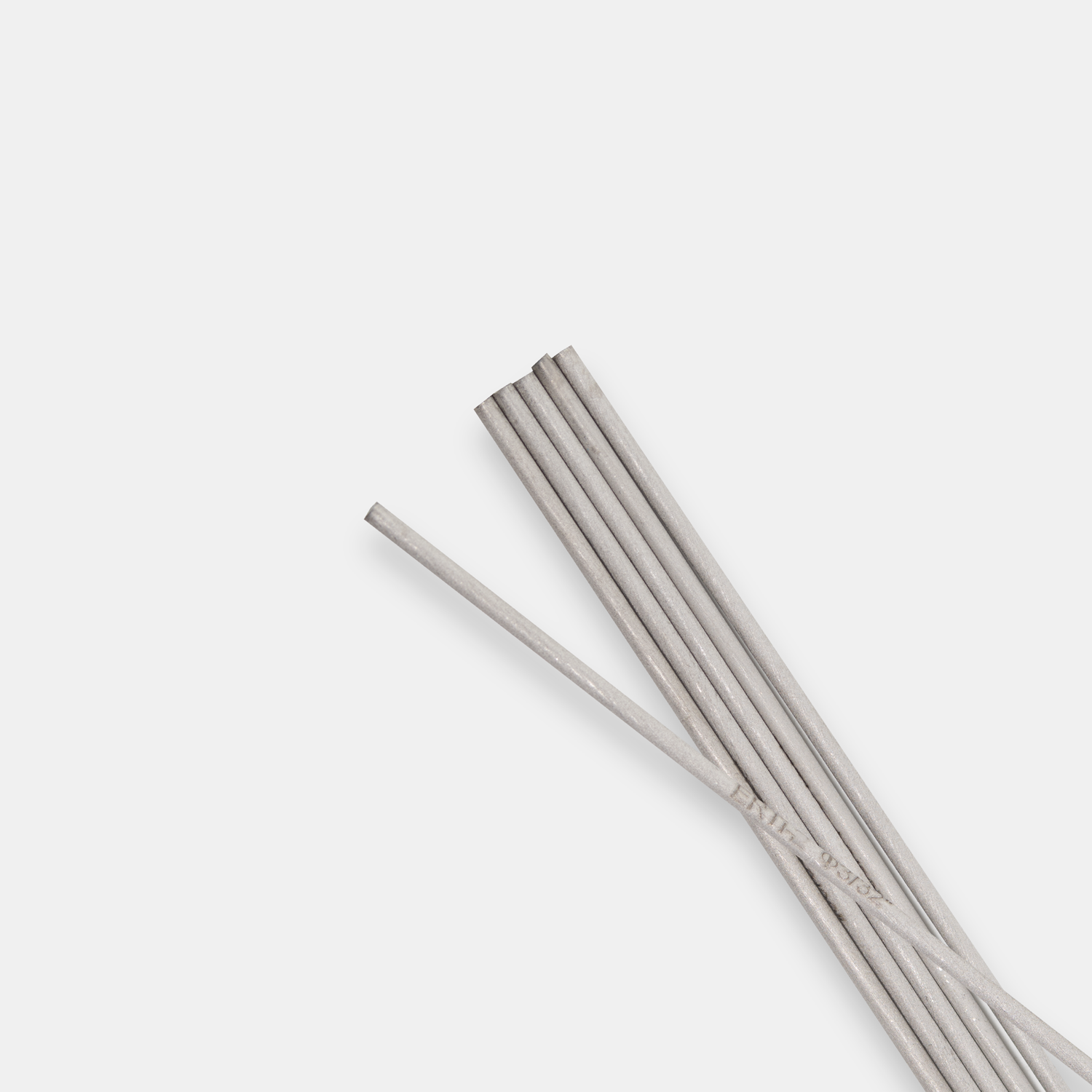

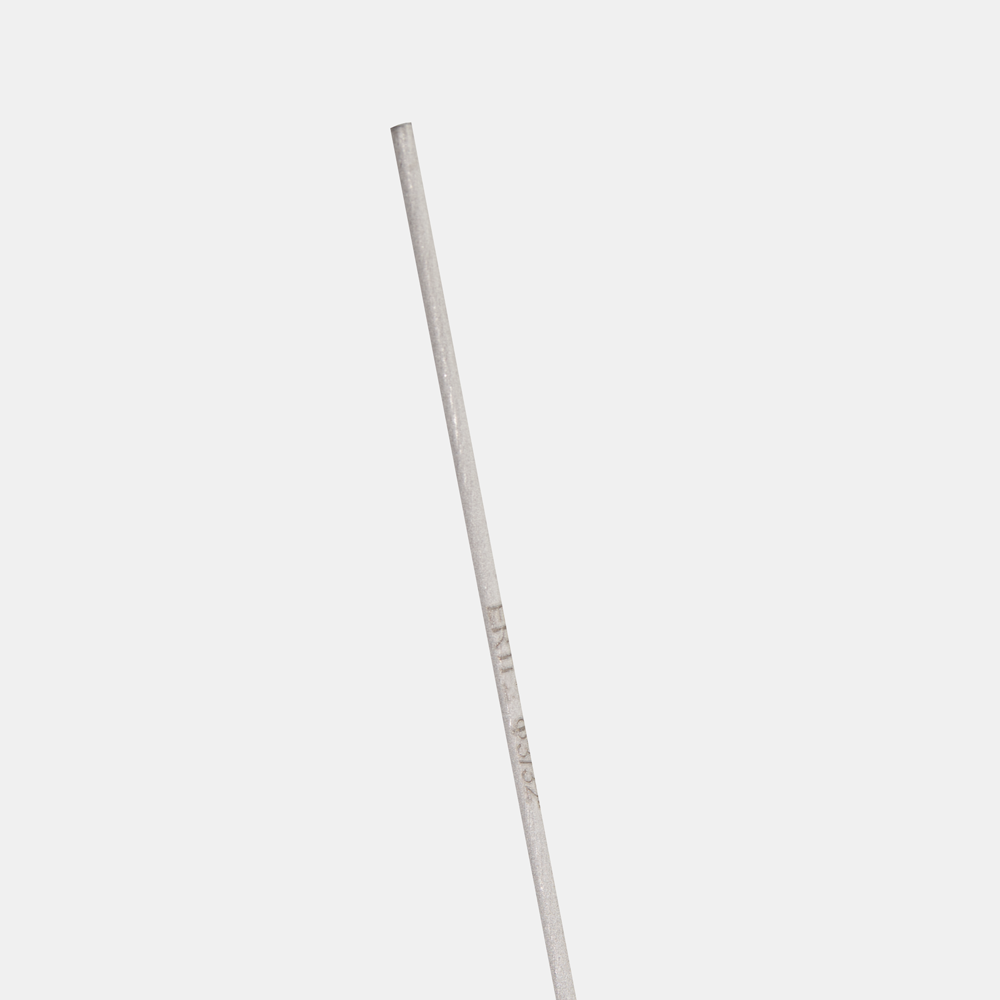

ERTi-2
AWS A5.16 ERTi-2
ERTi-2 is a TIG and MIG filler metal used for welding commercial pure titanium alloys commonly found in applications requiring high temperature resistance and resistance to chemical reagents. Although there are four grades of Commercial Pure Titanium filler metals, C.P. Grade 2 (ERTi-2) is the most popular because of its good balance of strength, formability and weldability. The most common application of Commercial Pure Titanium is the aircraft industry, where tensile strength
and weight ratios are so critical. Other uses would include cryogenic and petrochemical applications such as chemical process heat exchangers, pressure vessels and piping systems, pulp bleaching systems, electro chemical and chemical storage tanks.
TYPICAL WELD METAL CHEMISTRY (%)
C | 0.030 |
O | 0.100 |
H | 0.008 |
N | 0.015 |
Fe | 0.12 |
Ti | Balance |
*All single values of chemical compositions shown are maximum percentage.
MINIMUM MECHANICAL PROPERTIES (as welded)
Tensile strength (psi) | 50,000 |
Yield strength (0.2% offset) (psi) | 40,000 |
Elongation in (%) | 20 |
