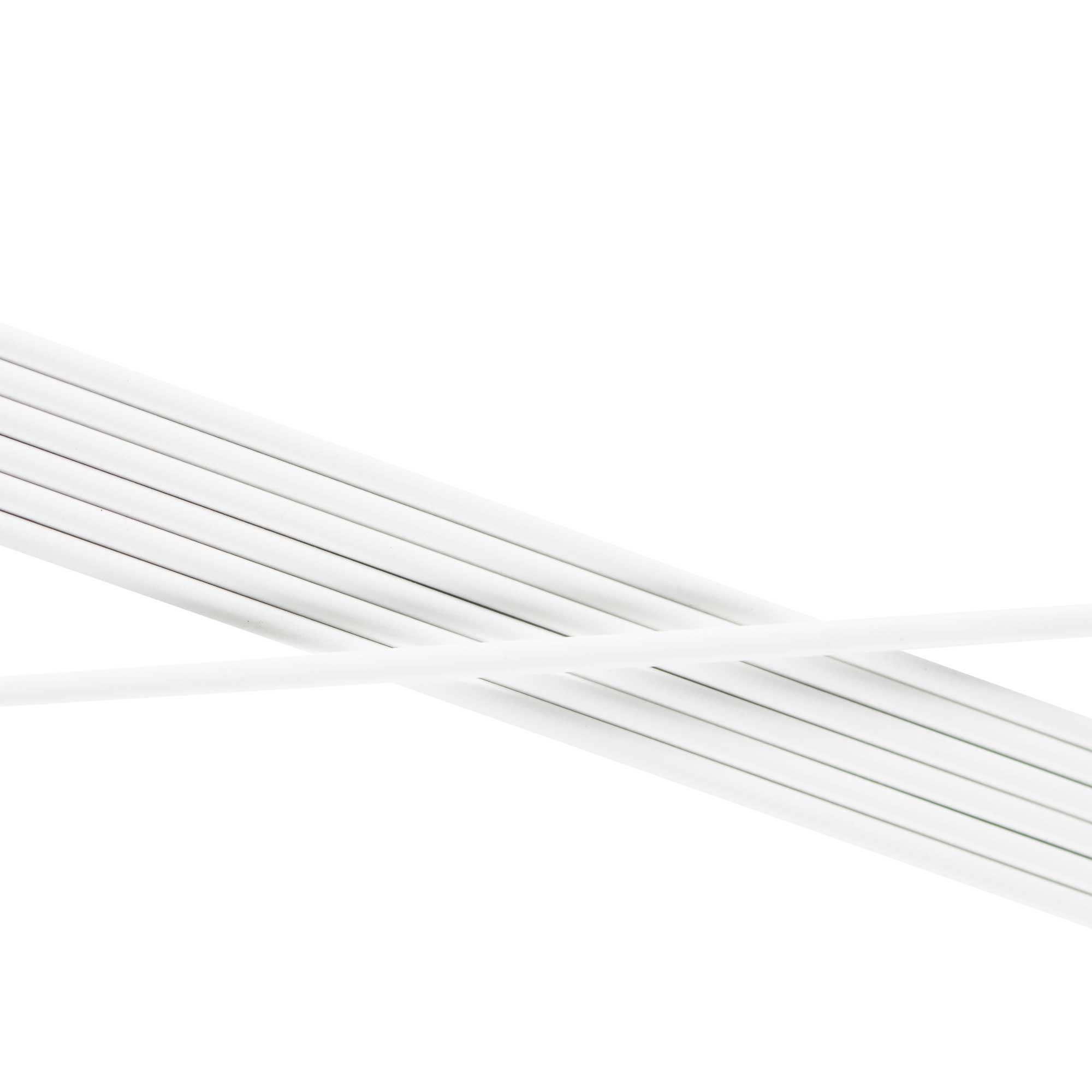

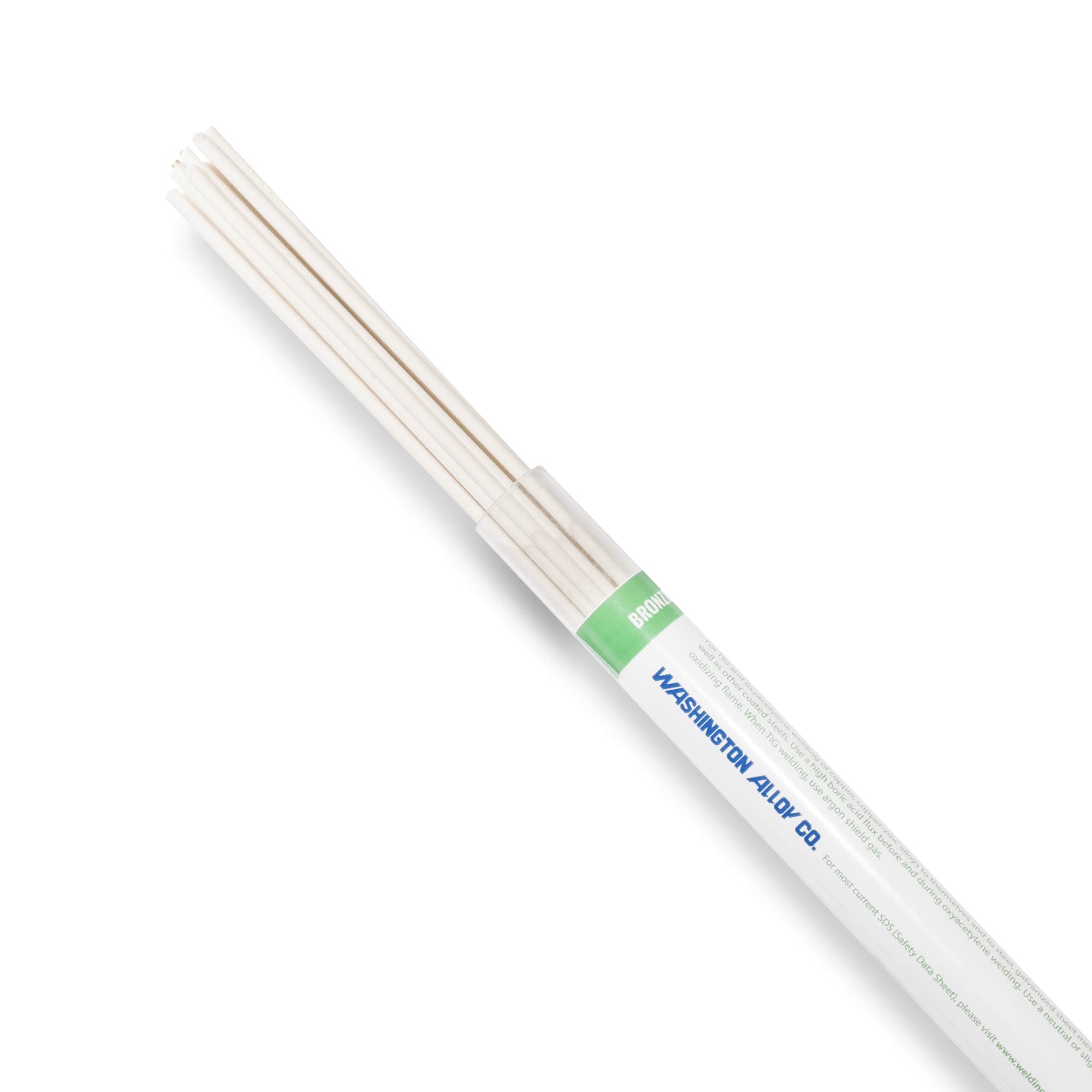

FLUX COATED LOW FUMING BRONZE

AWS A5.8 RBCuZn-C | ASME SFA5.8 RBCuZn-C

Washington Alloy Low Fuming Bronze is a general-purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys and stainless steel. A balanced chemical analysis of copper and zinc as well as alloying elements of tin, iron, manganese and silicon produce weld deposits are easily attained simply by applying a neutral or slightly oxidizing flame. The high silicon content of Washington Alloy Low Fuming Bronze keeps fumes to a minimum. Preheating is required for some applications and bronze brazing flux is required for the bare rods.

Applications:

Used for steel, copper alloys, cast iron, nickel alloys and stainless steel.

Chemical Composition, Weight Percent

-

LFB

Copper

56.0-60.0

Zinc

Balance

Tin

0.80-1.10

Iron

0.25-1.20

Manganese

0.01-0.50

Silicon

0.04-0.15

Total other elements

0.50 max including Pb of 0.05 and Al of 0.01 on each

Physical Data: Typical

Solidus

1590°F(866°C)

Liquidus

1630°F (888°C)

Brazing Range

1330-1550°F (721-843°C)

Color

Yellow Brass

Hardness as welded

80-100 Brinell

Tensile Strength

60-68,000
