RAINIER 40

AWS 5.6 ECuMnNiAl

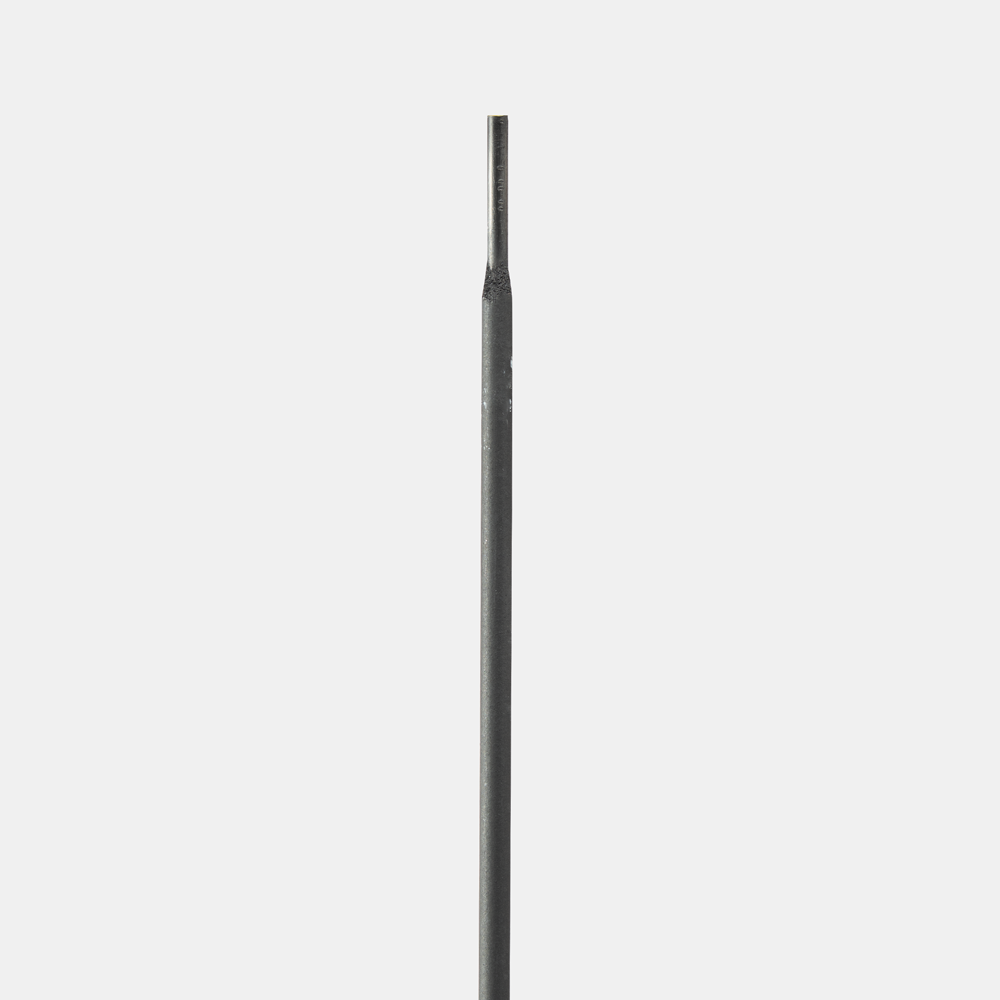

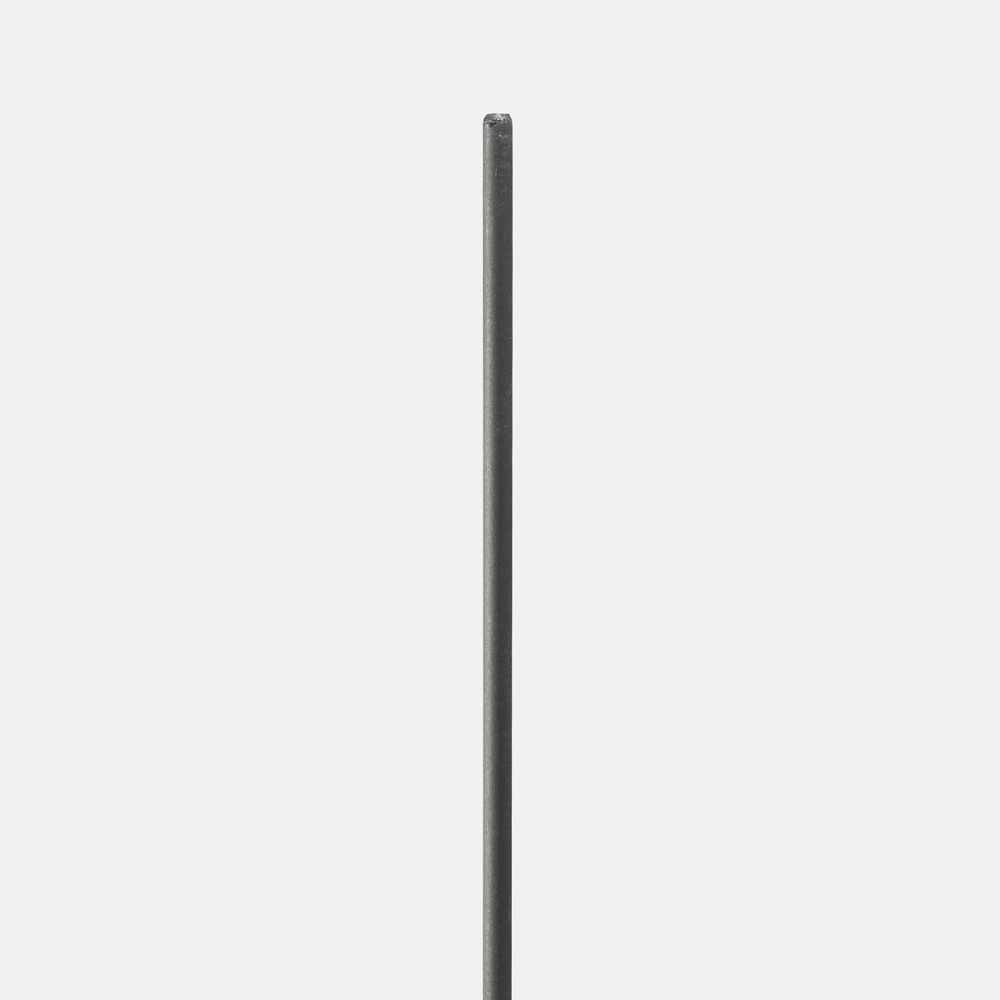

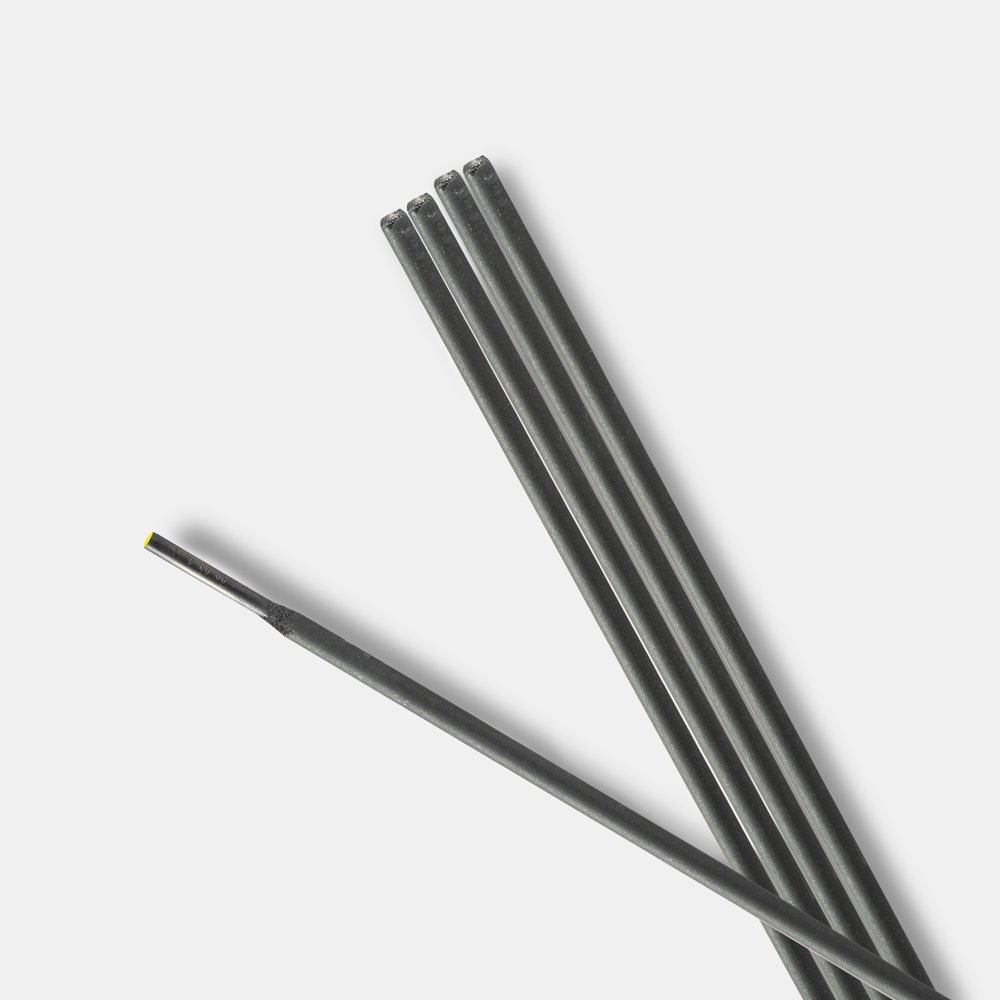

Rainier 40 is a multi purpose flux-coated electrode used to join or repair casting and wrought alloys in the manganese, nickel, aluminum bronze family. Suited for ship propellers, marine components and similar analysis where resistance to corrosion, erosion and cavitation is required. Also found in joining and surfacing dissimilar alloys as well as grey cast iron.

TYPICAL WELD METAL CHEMISTRY (%)


AWS Spec

Sn

(O)

Pb

0.02 max.

Al

0.5-3.0

Zn

(O)

Ni

1.5-3.0

Si

1.5 max.

Fe

2.0-4.0

Cu

Balance

Mn

11.0-14.0

Others

0.50 max.

(O): Included in other elements

TYPICAL MECHANICAL PROPERTIES OF WELD METAL (as welded)

Tensile strength (psi min.)

75,000

Yield Strength (psi max)

55,000

Brinell Hardness

160-200

Elongation in 2" (% min.)

15
